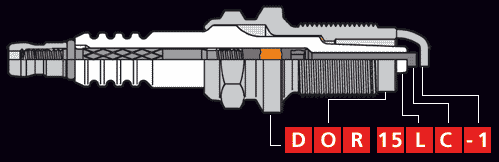

IDENTIFICATION SYSTEM

D

Shell dimensions

O

Metal shell projected into combustion chamber





Complies with relevant ISO standard



O

Does not comply with relevant ISO standard

R

Interference suppres





No interference suppression



R

Interference suppression



X

Resistor reducing electrode burn-off

15

Heat range



Hot

Cold





19

18

17

16

15

14

12

10

08



L

Spark gap design





Not projected insulator tip



Y

Projected insulator tip



L

Extremely projected insulator tip



T

Projected insulator tip and three ground electrodes EXTRA



LG

Extremely projected insulator tip and ring-shaped spark gap PREMIUM



Z

Two auxiliary electrodes on the insulator tip and ring-shaped electrode gap PREMIUM



TX

One auxiliary electrode on the insulator tip and three ground electrodes PREMIUM



LT

Extremely projected insulator tip and three ground electrodes EXTRA

C

Elektrode material





Nickel-alloy centre electrode



C

Copper cored centre electrode SUPER



S

Silver centre electrode SILVER



P

Centre electrode with platinum contact PLATIN



PP

Centre and ground electrode with platinum contact PLATIN

-1

Spark gap





0,4 - 0,9 mm



-05

0,5 mm



-1

1,0 - 1,1 mm



-3

1,3 mm



-X

Special



Shell Dimensions


sealing ring


sealing ring


sealing ring


conical seat


conical seat


conical seat


sealing ring


sealing ring


sealing ring


sealing ring


sealing ring


conical seat

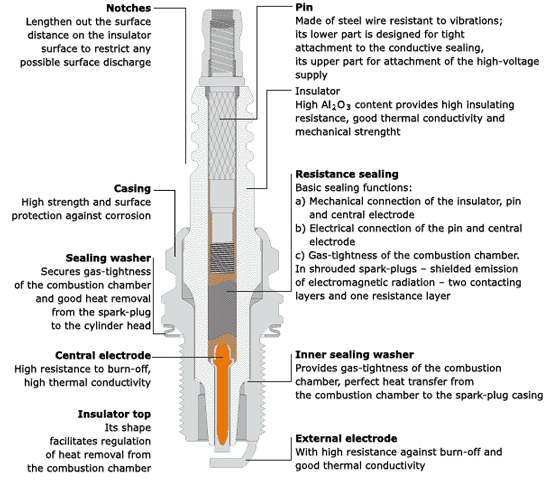

CONSTRUCTION
